Precision Machine Tools & Accessories

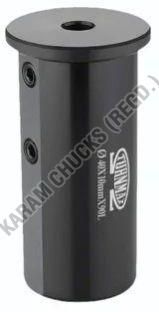

We are engaged in offering CNC Machine Turret Sleeves  to our clients. Our range of all products is widely appreciated by our clients.

Additional Information:

Item Code: Sleeve

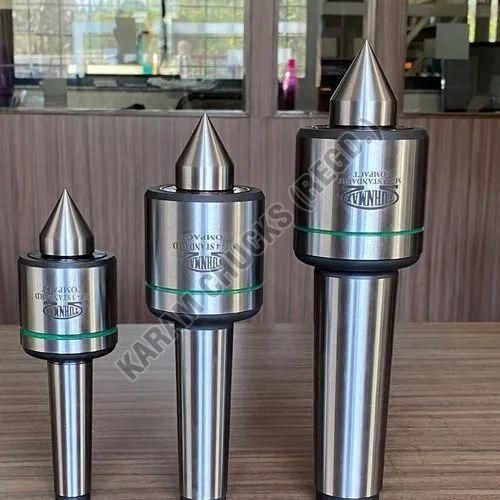

We are engaged in offering Heavy Duty CNC Revolving Center Spare Point to our clients. Our range of all products is widely appreciated by our clients.

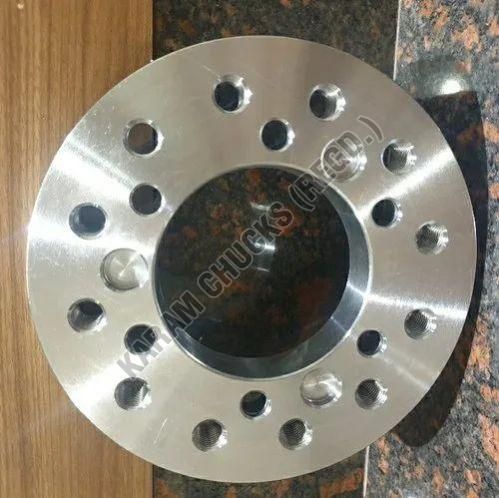

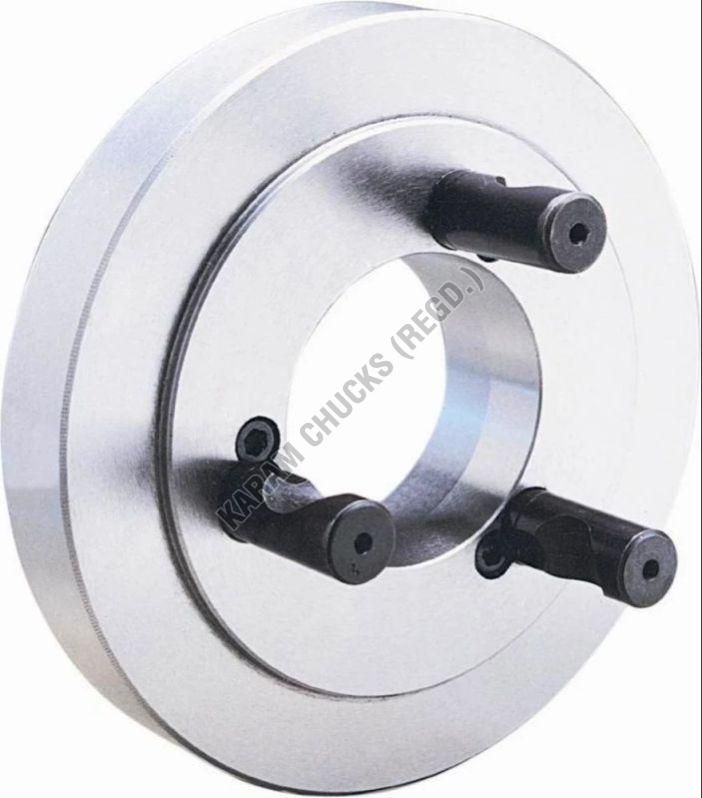

Backplates plays a very important role in industry, they are intermediators between Chuck & Spindle Nose.

Features:

High Accuracy & Rigidity: Pull-back design draws workpiece securely against a part locator for 'dual-contact' rigidity.

Modular Design: All Mandrel models have a common flange configuration, enabling full interchangeability with all back bodies.

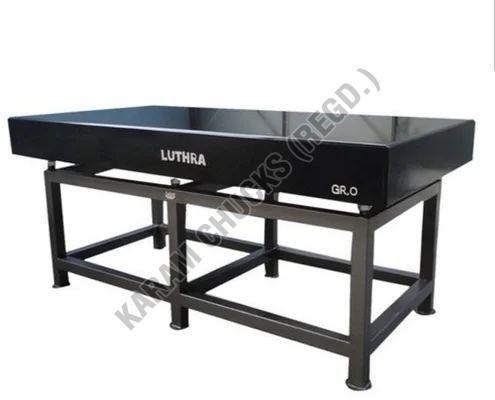

Features

• Uniformity In Hardness
• Accurate Under Load Conditions
• Vibration Absorbent
• Easy To Clean
• Rust-Proof, Non-Corrosive
• Lower Coeffficient of Thermal Expansion
• Warp Resistant
• Low Porosity
• Non-Abrasive
• Non-Magnetic

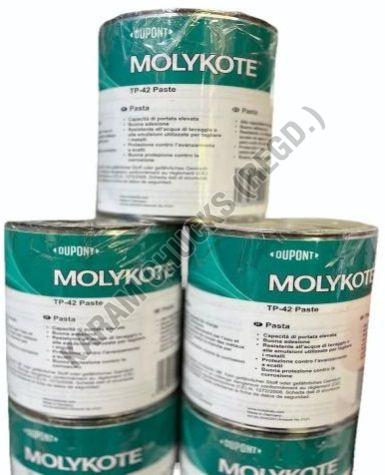

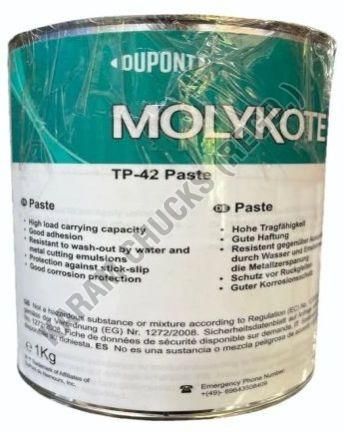

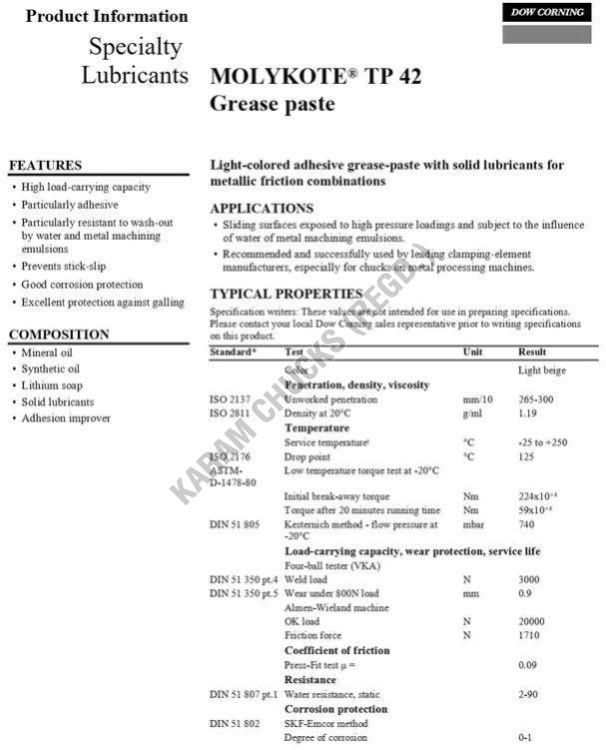

MOLYKOTE® TP 42 Grease Paste for Power Chucks - Light-colored Adhesive Grease-paste with Solid lubricants for Metallic Friction Combinations

A mineral oil-based anti-seize paste formulated with solid lubricants such as white solids - used primarily as a chuck paste.

• High load-carrying capacity• Particularly adhesive• Particularly resistant to washout by water and metal machining emulsions• Prevents stick-slip• Good corrosion protection• Excellent protection against galling

• High load-carrying capacity

• Particularly adhesive

• Particularly resistant to washout by water and metal machining emulsions

• Prevents stick-slip

• Good corrosion protection

• Excellent protection against galling

• Good corrosion protection

• Good fretting protection

• Good water resistance

• High load carrying capability

• High tack & adhesion

• High temperature performance

• High wear resistance

• Low speed performance

• Wide temperature range

Discription:-

Fully-synthetic chuck jaw paste for lubricating friction and sliding points under high and impact-loaded loads.

Advantages:

• Resistant to water, steam and aqueous cooling lubricants
• Prevents frictional corrosion reliably
• Highly effective due to optimum solid lubricant combination
• Minimal consumption due to formation of highly effective lubricating films

Area Of Application:

• Long-term lubrication of dirt-sensitive sliding points under vibration stresses
• Particularly suitable for lubricating chucks on tool machines
• Broad range of uses at stress-loaded parts, also at contact with cooling lubricants
• Lubrication of control and drive mechanisms
• Can be used at filling, labelling and packaging machines

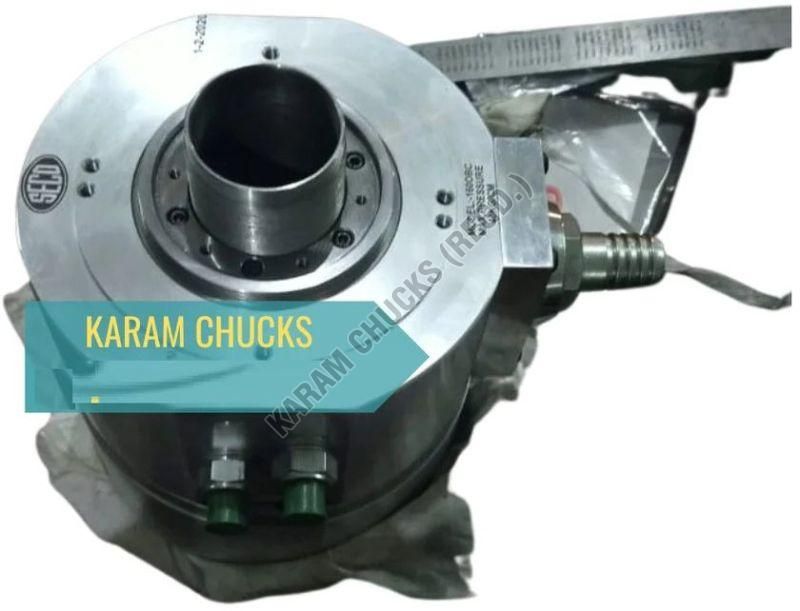

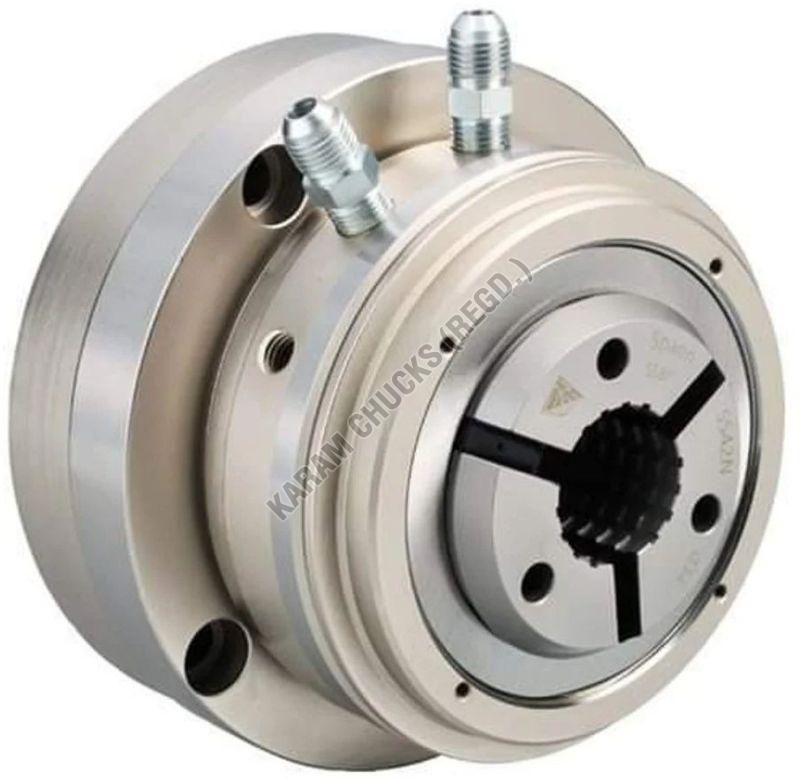

We sell JATO Taiwan make Hollow Bore Pneumatic Cylinder

Bore 36mm (Model JAL 636)

Product Features

•  Open center air cylinder,saving cost of hydraulic equipment
• Open center design allows bar parts gripping
• Adavnce bearing design:low temperature rising when operation
• Low Air leakage
• Double piston design to offer high pulling force.(JA362)
• Plesae use 5um filter in F.R.L units

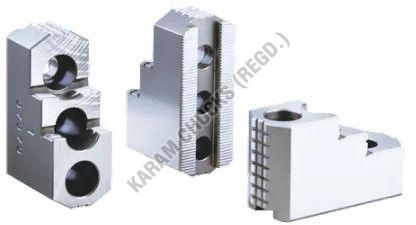

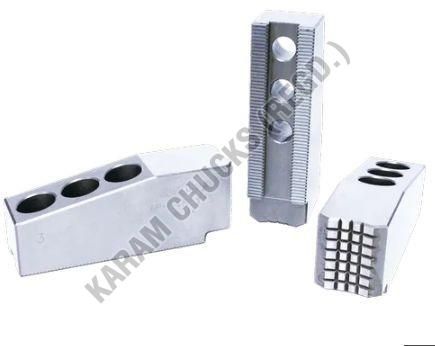

Power Chuck Top Hard Jaw are available for all type of International make Power Chucks. They are available in different serration & different slots sizes as per need / requirement of the customer.

Features:

• This vice can be clamped vertical or either side
• High clamping force
• Hardened jaws to maintain accuracy for long time
• Sealed bearing system reduces clamping pressure and increase bearing life
• Accuracy in parallelism & squareness with in 0.02/100mm

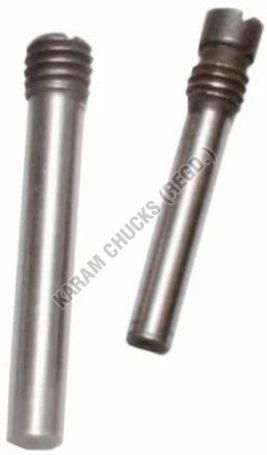

These pinions are used to rotate the scroll in the chuck body, which forcibly pushes the jaws and clamp the job.

We are engaged in offering Self Centering Chuck Pinion Pins  to our clients. Our range of all products is widely appreciated by our clients.

Note:

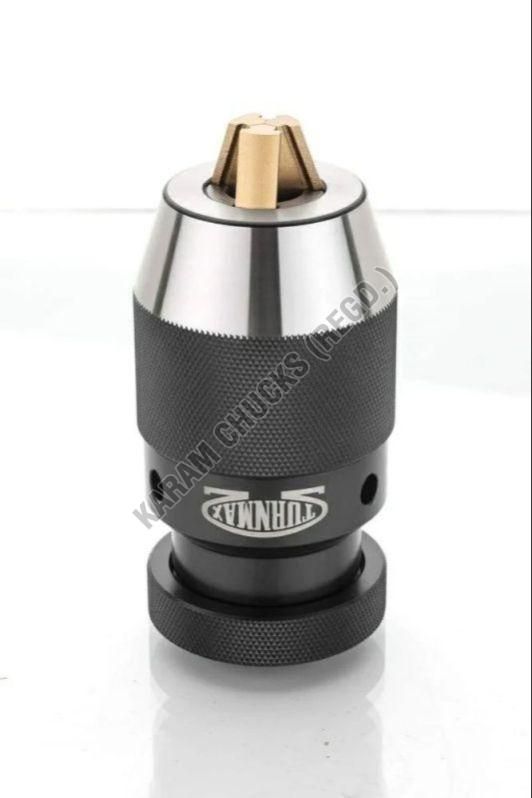

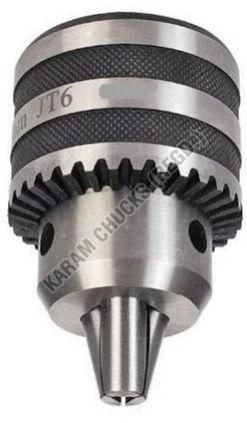

• Wipe off the antirust oil applied on both keyless chuck female taper and drill chuck arbor male taper with MTO or kerosene before assembling them together. Do not hammer or use press machine to lock the chucks. This would distort the chuck beyond repair.
• For right hand rotation application only.

Features:

• High Accuracy 0.01/100 Mm
• Unlimited Clamping Range
• High Quality Alloy Steel
• Hardened & Ground
• Can Be Used Multiple Style
• No Length Height Limitations
• No Jaw Lift
• Low Profile
• All Vices Are Matched
• Supplied With Stopper For Fast Production

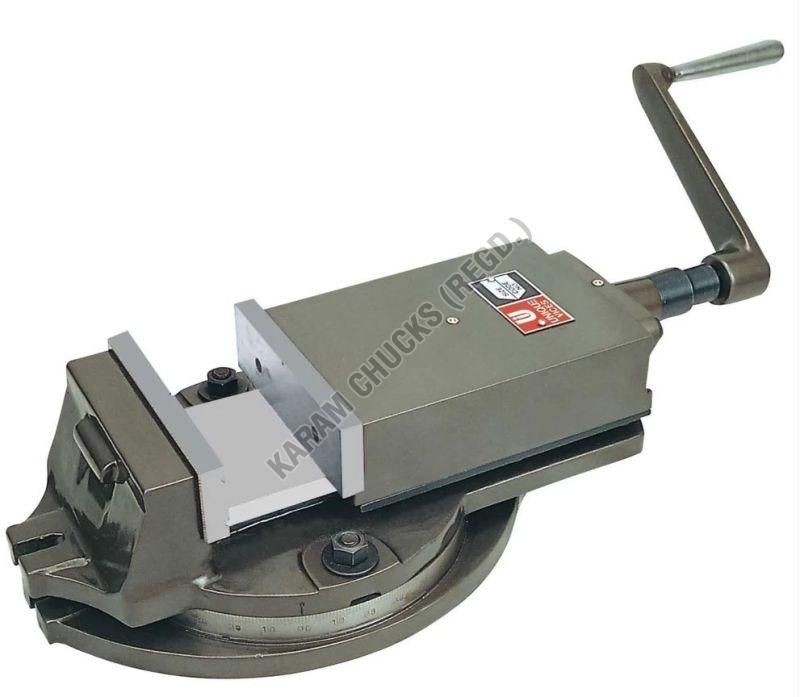

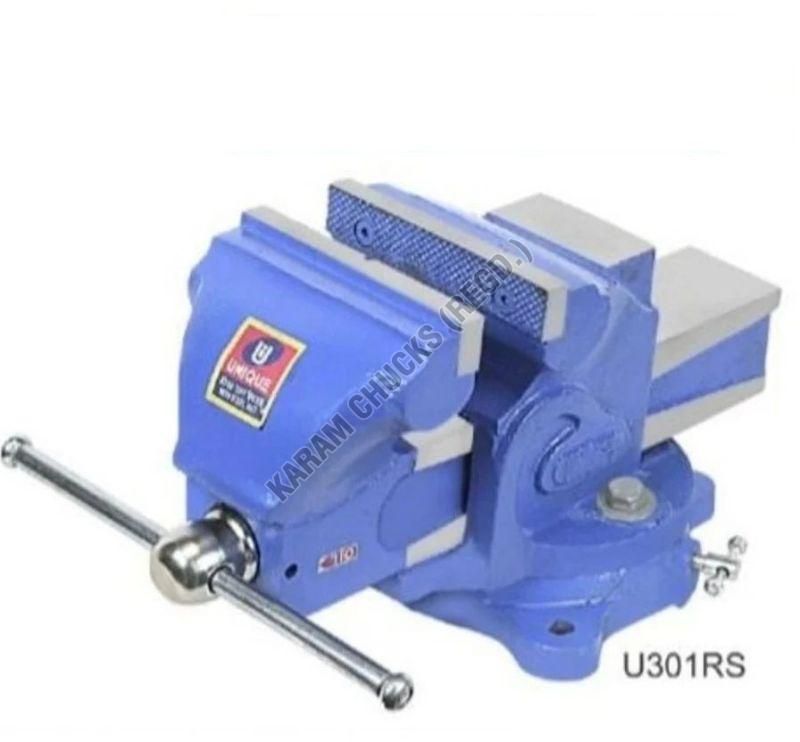

Features:

• Fitted with thrust bearing for smooth movement
• Sturdy and accurately made machine vice from graded casting
• Fine acme thread screw
