Power Chucks

 Manufactured from high-grade alloy steel, all the sliding surfaces of this chuck are hardened and ground for accurate running and long service. Standard hard jaws and soft jaws are provided for chucking the special components.

The Wedge design of the chuck has a self-locking feature, that prevents accidents and it does not loose its gripping power even at cutting loads. Each base jaw is provided with a lubricating nipple to ensure long and trouble free life.

• We are Authorized dealers to sell Shasons (Jainson) make dog chucks
• Sizes available 100mm, 160mm, 200m, 250mm, 315mm, 400mm, 450mm, 500mm, 600mm
• Special Large Bore / Big Bore Chucks also available in 14", 16", 18", 20" Models
• Additional Information:
• Item Code: Shasons
• Production Capacity: As per need of customer
• Delivery Time: Ready Stock
• Packaging Details: Cartoon / Wooden case according to size

These chucks are specialy designed & developed to clamp rectanguar components.  As 2 jaw are moving with 1 screw & other 2 are moving with another separate screw. 2 jaw facing each other are moving together & other set is moving together. Like Jaw 1 & 3 moving together with 1st Screw & Jaw 2 & 4 moving together with 2nd Screw. Rectangular Jobs can be clamped very easily. Jaws are designed in L Type so that any kind of fixture can be clamped easily.

We are engaged in offering Samchully MH-208V1 Power Chuck  to our clients. Our range of all products is widely appreciated by our clients.

Designed as a low cost alternative to Power Chucking Systems, these chucks are used for machining work pieces that cannot be chucked optionally in power operated jaw chucks. They are ideal for machining parts that are susceptible to deformation or surface damage or components that require high speed machining. They are equipped with a lubrication facility that ensures a long, trouble free life.

• Hydraulic Chucks are ideal tool holders for high-accuracy machining processes such as drills, reamers, ball mills, end mills, diamond reamers, and grinding tools.
• Hydraulic Chuck Standard: Ideal tool holders for high-accuracy machining processes such as drills, reamers, ball mills, end mills, and so on.
• Hydraulic Chuck Super Slim: These tool holders are ideal for precision finishing processes in small spaces. Interference is eliminated by the slim design.
• Hydraulic Chuck Jet Through: It is Ideal for finishing applications that require improved coolant delivery.
• They are also available for simultaneous fit systems and all other major interfaces, with a wide range of tool diameters and projections to suit any application. Hydraulic Chucks are ideal tool holders for high-precision precision work.

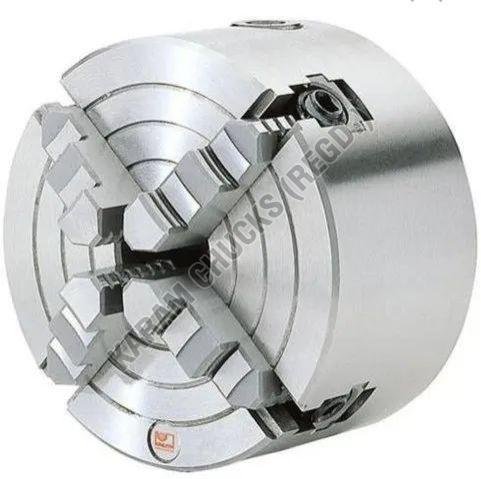

It combines the design advantages of both the self-centering and independent chucks. The chucks have both scroll operated jaws and independent jaws which allows non-symmetrical jobs to gripped accurately. The chuck body is made of forged steel while the other parts such as jaws and pinions are made of heat treated carbon steel or case hardened alloy steel.

The selection criteria are:

• The size of the chuck dependent on the capacity/size of the machine.
• The diameter of the chuck should be slightly less than twice the centre height of the machine.

Additional Information:

Item Code: COMBICHUCK

Features:

• Wedge hook type jaw with the extra large through-hole.


• Matching surfaces of all parts hardened, ground and lubricated directly.


• Construction of high rigidity and high clamping accuracy.


• J is the hole diameter of blank draw nut.


• If not notified, Autogrip will adopt the K Default as K value.


• K is the maximum thread specification, and it could be customize.

These chucks have larger bore than normal chucks. These are suitable where machine is light and the Job demands larger bore. Operating Key, Mounting Bolts, Allen Key, Tap & Inspection Report is provided with each chuck.

Power Chuck Dust Cover is used to prevent Dust / Iron Chips to go in Chuck Body. Iron Chips / External metallic dust damage the major parts in Power Chuck (Wedge, Body & Base Jaws) which cause Breakage of Chuck Body & its parts. It's always recommended to run Power Chuck with Dust Cover fitted.

They are designed to rotate at high speed on CNC Lathe. The compact construction offers further advantage of less weight and low inertia which have positive influence on dynamic effect of CNC machine spindle.

Features

• Built In Rotary Cylinder
• No draw tube
• Extra large piston
• Centre through hole
• No fluid direct to chuck bosy
