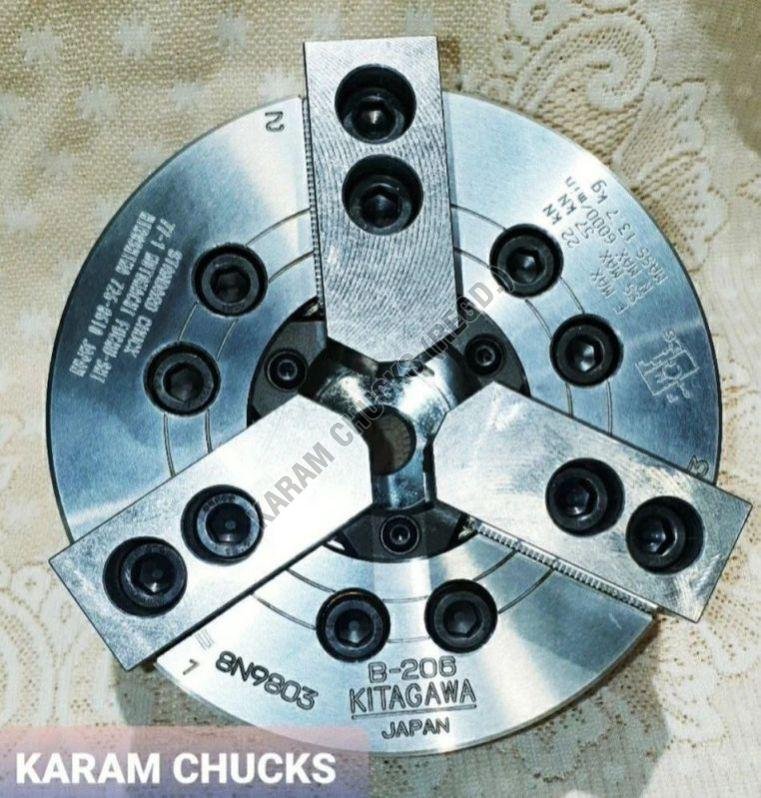

Kitagawa Power Chuck
Leading Manufacturers, Exporters, Wholesaler and Trader of Kitagawa B208 Power Chuck and Kitagawa BR08 Power Chuck from Ludhiana.
| Business Type | Exporter, Supplier, Trader |
| Brand Name | Kitagawa |
| Finishing | Polished |
| Shape | Round |
| Color | Silver |
| Country of Origin | India |
| Model Name/Number | B208 |
| Speed | 5000 rpm max |
| Through Hole | 52mm |
| Grip Range | Max 210mm |
| Jaw Stroke | 7.4mm |
| Plunger Stroke | 16mm |
| Business Type | Exporter, Supplier, Trader |
| Finishing | Polished |
| Shape | Round |
| Color | Silver |
| Country of Origin | India |
| Model Name/Number | BR08 |
| Number Of Jaws | 3 |
| Size | 210 mm |
| Speed | 5000 Rpm Max |
| Maximum Gripping Force | 90 kN |
| Through Hole | 66mm |
| Grip Range | 22 to 210mm |
| Jaw Stroke | 7.4mm |
| Master Jaw Serration | 1.5mm X 60 Degree |
Discription:-
- High standard gripping accuracy of 0.01mm or less with formed jaws gripping a test bar.
- Suitable for workpiece transfer with sub spindle.
- Low centrifugal force at high speeds.
- Inter changeable with B208, BB208 & QJR08.
- Additional special Patented T-Nuts can be supplied to maintain 0.01mm or less repeatability even after changing jaws - significantly reducing set-up time.
