| Business Type | Exporter, Supplier, Trader |
| Finishing | Polished |
| Shape | Round |
| Color | Silver |
| Click to view more | |
Product Details
Country of Origin
India
Model Name/Number
BR08
Number Of Jaws
3
Size
210 mm
Speed
5000 Rpm Max
Maximum Gripping Force
90 kN
Through Hole
66mm
Grip Range
22 to 210mm
Jaw Stroke
7.4mm
Master Jaw Serration
1.5mm X 60 Degree
Discription:-
- High standard gripping accuracy of 0.01mm or less with formed jaws gripping a test bar.
- Suitable for workpiece transfer with sub spindle.
- Low centrifugal force at high speeds.
- Inter changeable with B208, BB208 & QJR08.
- Additional special Patented T-Nuts can be supplied to maintain 0.01mm or less repeatability even after changing jaws - significantly reducing set-up time.

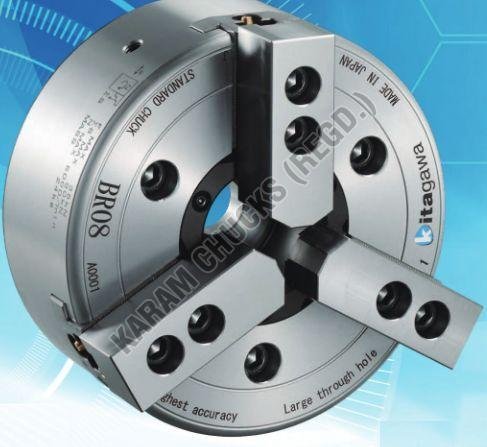

Looking for "Kitagawa BR08 Power Chuck" ?
