CNC Soft Jaws
Leading Manufacturers, Exporters, Wholesaler and Trader of 200mm Threaded Soft Jaw, Power Chuck Soft Jaw and Soft Jaw Boring Ring from Ludhiana.
| Business Type | Exporter, Supplier, Trader |
| Material | Alloy Steel |
| Color | Black |
| Country of Origin | India |
| Chuck Diameter | Max 400mm |
| Surface Finish | Grinded |
| Corrosion Resistance | Yes |
| Brand Name | Seco |
Threaded Soft Jaw are suitable for 2 Jaw / 3 Jaw / 4 Jaw / 6 Jaw Manual Hand Operated Self Centering True Chuck. Threaded Soft Jaw can be Machined as per customer requirement / suitable as per component.

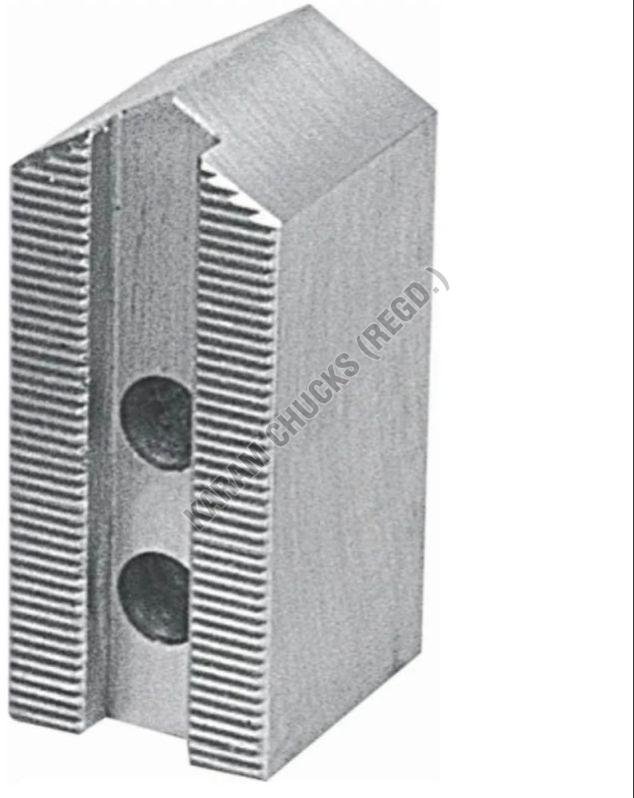

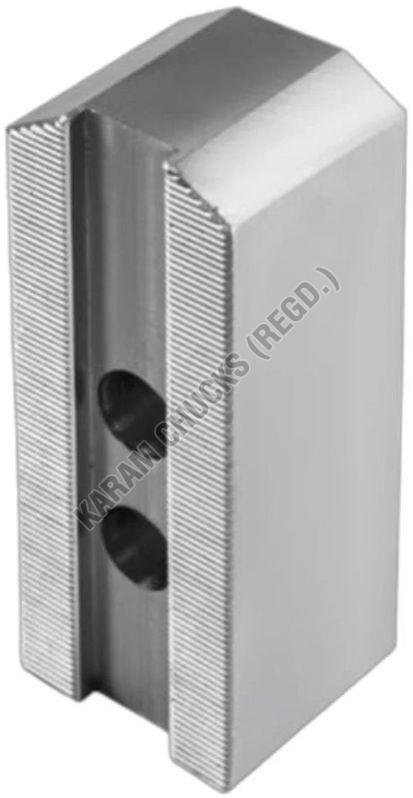

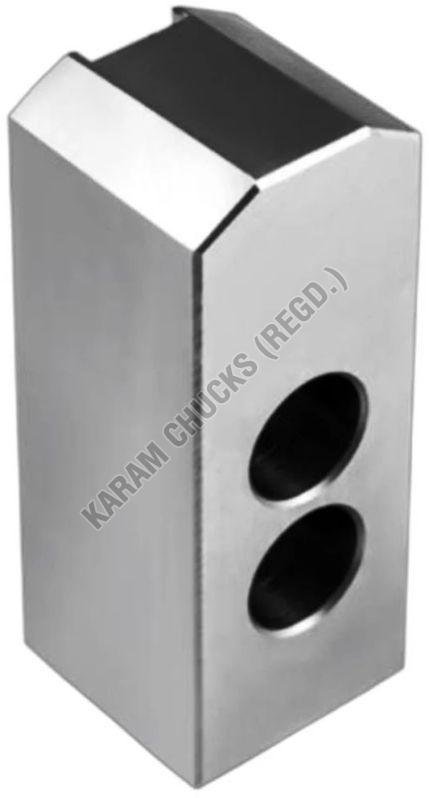

| Business Type | Exporter, Supplier, Trader |
| Material | Steel |
| Finishing | Polished |
| Packaging Type | Box |
| Country of Origin | India |
| Serration | 1.5mm x 60 degree |
| TPI | 16 |
| Chuck Size | Max 20 Inch |
| Corrosion Resistance: | Yes |
| Tensile Strength | 350 MPa |
| Business Type | Exporter, Supplier, Trader |
| Application | Used For Boring Soft Jaws On Power Chuck |
| Material | Stainless Steel |
| Shape | Round |
| Color | Silver |
| Size | 0-2 Mm |
| Type | Straight Shank |
| Country of Origin | India |
| Automation Grade | Automatic |
| Max Boring Depth | 0-50 feet |

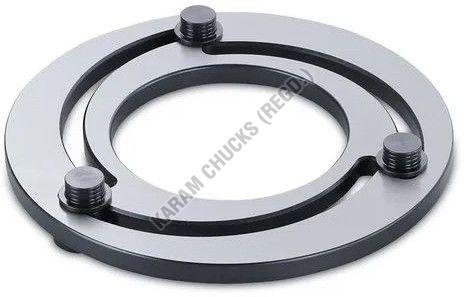

Soft Jaw Boring Ring is used to Bore / Turn Soft Jaws on Power Chuck or Manual Lathe Chucks. This replaces the traditional method people use for Boring Soft Jaws using a setup pieces they find on their shopfloor. Jaw Boring Ring save time looking for these pieces and apply pressure equally to all Jaws. They are quick to install.
Jaw Boring Ring help to obtain high accuracy and performance of the Jaws which increasing the life of Jaws
How to use Jaw Boring Ring
• Set the Jaws on the Chuck to the required size and position.
• Insert the Boring Ring pins in any counter bore of Jaw and adjust the Jaw boring ring to fit in.
• Clamp the Chuck for OD (Outside Diameter) Clamping / ID (Inside Diameter) Clamping
• Bore / OD turn to suite component OD / ID
• Declamp the Chuck and remove the Jaw Boring Ring
• Clamp the Component on OD / ID
